6 colors high speed semi servo ci flexo printing machine253-0

Semi-servo ci flexo printing machine

Home >  Products >  Plastic flexographic printing machine >  Semi-servo ci flexo printing machine

6 colors high speed semi-servo ci flexo printing machine

Model: QTHA-CI 6
Colors: 6colors
Printing repeat length: 380-1200mm
Large centre roller diameter: 1580mm
Product Description
Real Example
b3cd7f0707414285060ad644605698d6.jpg4af5cfb6227886bc3d36ce3923928cee.jpg5cc803b7440417ea743f63a138ec31f3.jpg

Product Introduction

1. Mechanical type: central big wheel type, the film is pointed out by a single big wheel, and does not leave the pressure wheel between a colour and a colour, so the set of colours is accurate.
2. Mechanical structure:
interchangeable specification of machine parts, low wear and tear design.
3. Drying method:
Separate electric heating box, sending warm wind blowing printed matter to use safety, automatic temperature control.
4. Squeegee type:
closed ink squeegee, high speed printing fine finished products.
5. Transmission system:
high-performance vector motor, start, accelerate, decelerate, stop, multiple buttons for easy operation, accelerate automatically to the preset speed after starting.
6. Colour register equipment:
up and down, left and right adjustable, easy to operate.
7. Take-up drive:
high-performance motor, linkage is correct, segment differential wheel low friction cylinder device tension is stable.



Product parameters
MODEL QTHA-CI 6600 QTHA-CI 6800 QTHA-CI 61000 QTHA-CI 61200
MAX.material width 600mm 800mm 1000mm 1200mm
MAX.printing width 550mm 750mm 950mm 1150mm
Suitable for material Paper:15-300g/m² Nonwoven:15-120g,PVC:10-120um,OPP:10-100um,BOPP:15-100um,PE:15-150um,NY:10-120um,PET:10-100um,CPP:10-100um
Colors 6colors
Printing repeat length 380-1200mm
Large centre roller diameter 1580mm
Machine speed 350m/min
Printing speed 10-300m/min(depends on the material)
Printing precision ±0.1mm
Plate thickness 1.7mm(if different thickness,please note us)
voltage 3P ,380V ,50HZ(Please advise if different)
Drying method Electrically heated

Equipment Details
封闭式刮刀Enclosed-scraper.jpg 电晕机corona-machine.jpg 油墨泵Ink-pumps.jpg

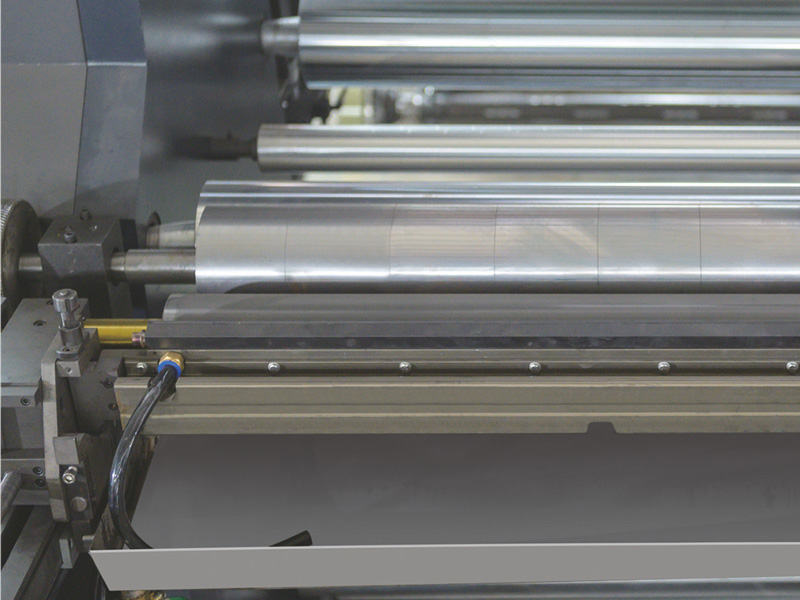

Enclosed scraper

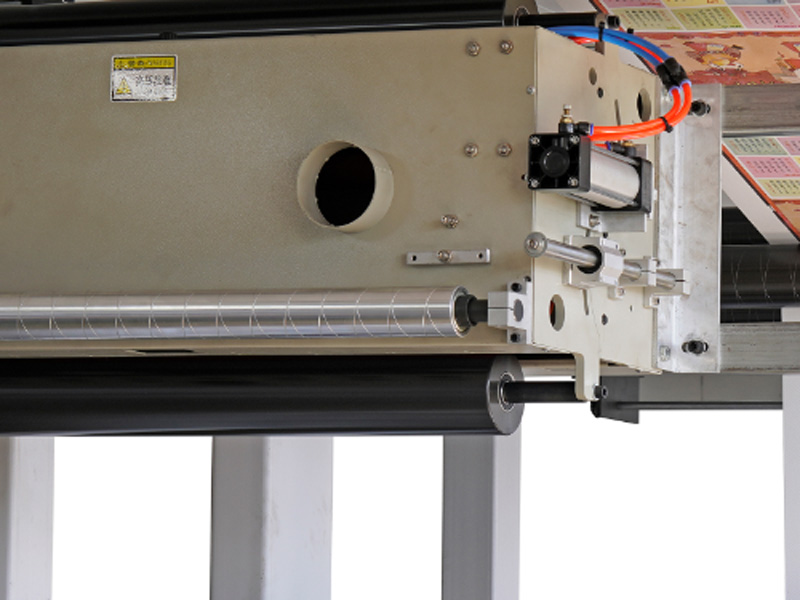

corona machine

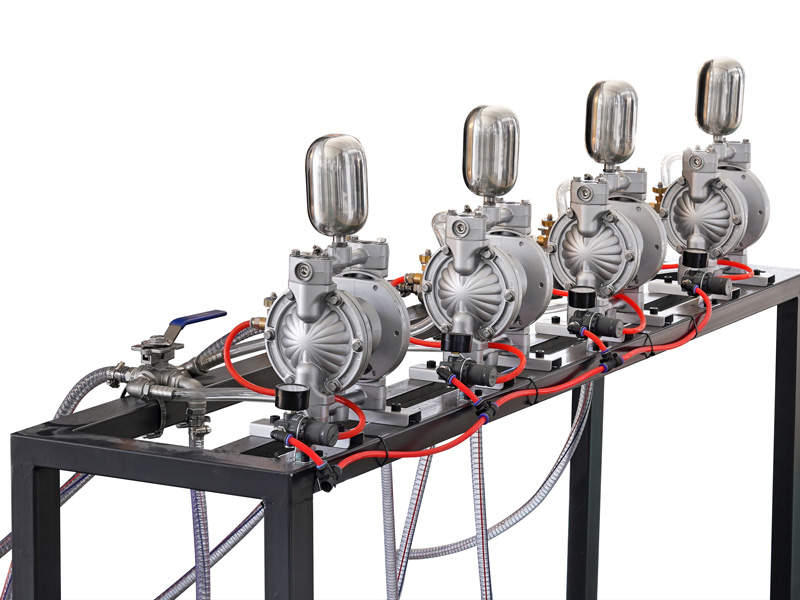

Ink pumps


delivery date:
Around 80 working days.

After-sales service:
one year warranty (excluding the ink transfer roller and the damage caused by the improper operation of the demand side)

FAQ

Q: How to determine the model you need?
A: Because each customer's requirements are not the same so flexographic printing presses need to be selected according to your requirements, we need to know your printing patterns, materials, ink types, printing speed, printing width and other specific information, we will be based on this information to ask you to recommend the right model and configuration!

Q: Warranty period of the equipment?
A: Our warranty period is 1 year (excluding the ink transfer roller and the damage caused by the improper operation of the demand side).

Q: What after-sales service does the manufacturer provide? (Installation/commissioning)
A: You can choose to let our master to your factory debugging installation, you can also choose remote after-sales service, specific requirements, please contact us for detailed communication!

Q: Flexographic printing machine can print the material?
A: Paper, plastic film (PE/PP/PET), non-woven fabrics, flexible packaging (such as food bags), aluminum foil and other rolls of material, printing materials are more extensive, you can also be and materials to carry out a test run, we will use the factory's existing machine to carry out a test run.

Q: Can you provide samples or proofs?
A: If you are afraid to buy the machine after the printing effect is not good, this problem you do not have to worry about, we have samples you can examine, you can also choose your own material to test the effect!

Q: What is the delivery period of the machine?
A: The delivery time of the machine and the configuration of the machine, the fastest delivery is about 30-40 working days, but the degree of customization is high if the delivery time needs to be extended!

Q: What is the maximum printing speed and width of the material?
A: The printing speed depends on the model, for example, our QTHA-CI series of machines his speed can reach 10-300m/min; the width of the overfeed is currently marked on our side is the maximum 1.2m, but if you need a larger size we can also support customized, the printing width is not as large as the width of the overfeed because of the need for a certain amount of adjustment space.

Q: What are the advantages of flexographic printing machine compared with gravure printing machine?
A: Flexographic printing using a flexible plate, through the anilox roller ink transfer, ink consumption than the gravure reduced by more than 20%; flexographic printing will generally be used in water-based ink, UV ink and other environmentally friendly ink, more environmentally friendly than gravure use of solvent-based inks, virtually no VOCS emissions can be achieved to the food-grade, and cleanup is simple, wide range of substrate materials.

Q: Do you support machine customization?
A: Our machines can be customized, each customer's requirements are unique, we will be more customer requirements and information to communicate with the custom to meet customer needs!
