4 Colors Inline Machine(360-degree color register)

Model: LT-4
Colors: 4colors
Printing repeat length: 220-1000mm
Machine speed : 100m/min
Product Description
Real Example
214b0ea8519ce8f0a9f80bb1c40af1b3.jpg55ffa04c4d92f61e0c7c350d42a8efd3.jpg012451d8025e1af869f6b75cf34821c7.jpg

Product Introduction
4 Colors Inline Machine.png
Product parameters

MODEL LT-4600 LT-4800 LT-41000 LT-41200
MAX.material width 600mm 800mm 1000mm 1200mm
MAX.printing width 560mm 760mm 960mm 1160mm
Suitable for material PVC:10-120um,OPP:10-100um,BOPP:15-100um,PE:15-150um,NY:10-120um,PET:10-100um,CPP:10-100um
Color register way 360-degree color register
Colors 4colors,4+0,3+1,2+2
Printing repeat length 220-1000mm
Machine speed 100m/min
Printing speed 10-70m/min(depends on the material)
Printing precision ±0.3mm
Plate thickness 1.7mm/2.28mm(if different thickness,please note us)

Equipment Details

静止画面显示屏Still Picture Display.png 印刷组printing group.png

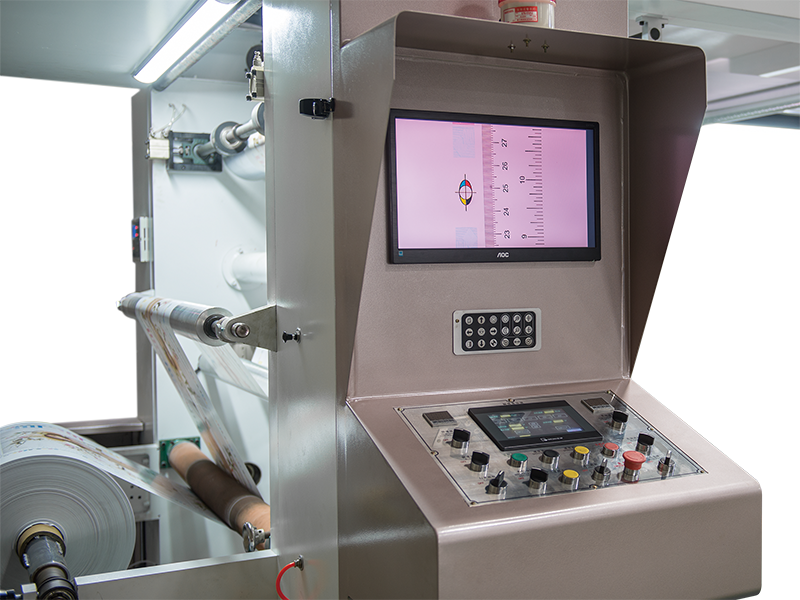

Still Picture Display

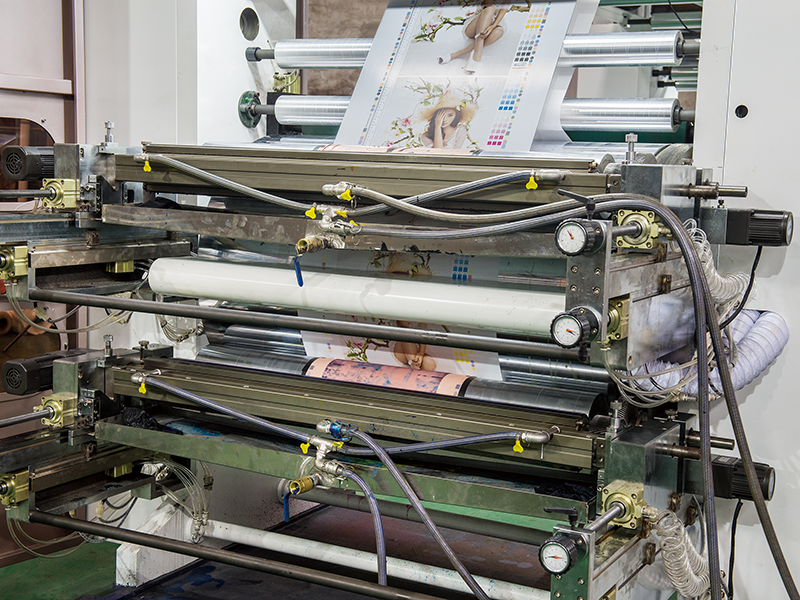

Printing group

气动放料Pneumatic Discharge.png 油墨泵Ink pumps.png

Pneumatic Discharge

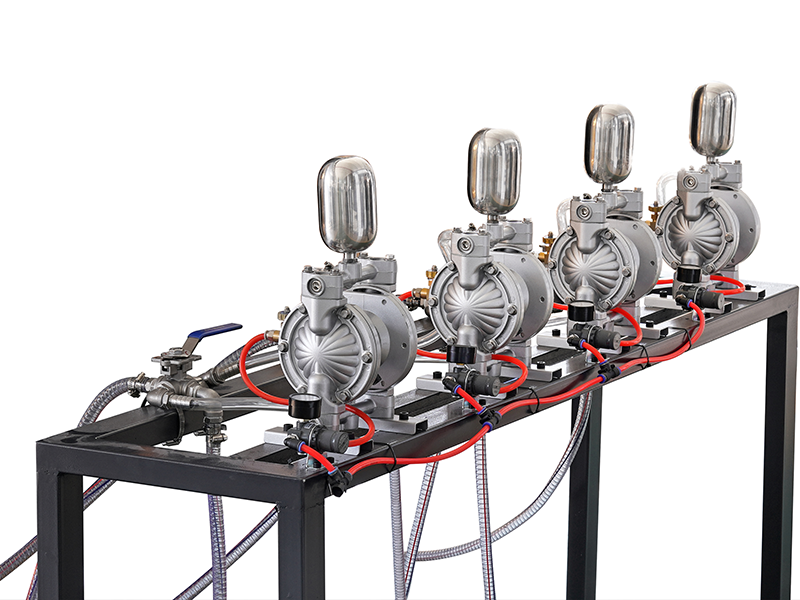

Ink pumps


delivery date:
Around 30 working days

After-sales service:
one year warranty (excluding the ink transfer roller and the damage caused by the improper operation of the demand side).We can provide remote guidance services. If you need to go locally, please contact us for further discussion.

FAQ

Q: How to determine the model you need?
A: Because each customer's requirements are not the same so flexographic printing presses need to be selected according to your requirements, we need to know your printing patterns, materials, ink types, printing speed, printing width and other specific information, we will be based on this information to ask you to recommend the right model and configuration!

Q: Warranty period of the equipment?
A: Our warranty period is 1 year (excluding the ink transfer roller and the damage caused by the improper operation of the demand side).

Q: What after-sales service does the manufacturer provide? (Installation/commissioning)
A: You can choose to let our master to your factory debugging installation, you can also choose remote after-sales service, specific requirements, please contact us for detailed communication!

Q: Flexographic printing machine can print the material?
A: Paper, plastic film (PE/PP/PET), non-woven fabrics, flexible packaging (such as food bags), aluminum foil and other rolls of material, printing materials are more extensive, you can also be and materials to carry out a test run, we will use the factory's existing machine to carry out a test run.

Q: Can you provide samples or proofs?
A: If you are afraid to buy the machine after the printing effect is not good, this problem you do not have to worry about, we have samples you can examine, you can also choose your own material to test the effect!

Q: What is the delivery period of the machine?
A: The delivery time of the machine and the configuration of the machine, the fastest delivery is about 30-40 working days, but the degree of customization is high if the delivery time needs to be extended!

Q: What is the maximum printing speed and width of the material?
A: The printing speed depends on the model, for example, our QTHA-CI series of machines his speed can reach 10-300m/min; the width of the overfeed is currently marked on our side is the maximum 1.2m, but if you need a larger size we can also support customized, the printing width is not as large as the width of the overfeed because of the need for a certain amount of adjustment space.

Q: What are the advantages of flexographic printing machine compared with gravure printing machine?
A: Flexographic printing using a flexible plate, through the anilox roller ink transfer, ink consumption than the gravure reduced by more than 20%; flexographic printing will generally be used in water-based ink, UV ink and other environmentally friendly ink, more environmentally friendly than gravure use of solvent-based inks, virtually no VOCS emissions can be achieved to the food-grade, and cleanup is simple, wide range of substrate materials.

Q: Do you support machine customization?
A: Our machines can be customized, each customer's requirements are unique, we will be more customer requirements and information to communicate with the custom to meet customer needs!
