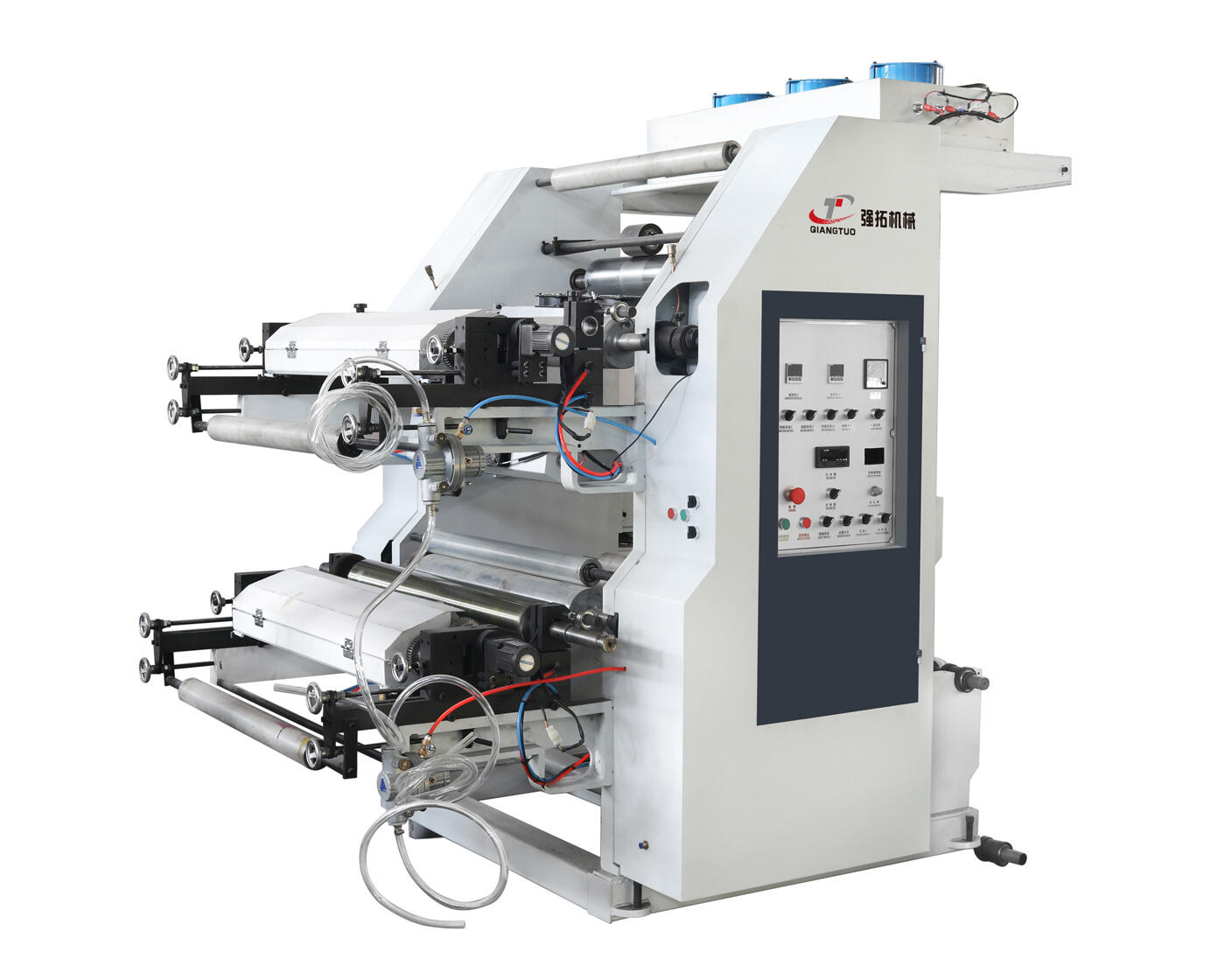

2 Colors Medium Speed Stack Type Flexo Printing Machine

Model: QTL-2
Colors: 2colors,2+0,1+1
Printing repeat length: 220-1000mm
Printing speed: 10-70m/min(depends on the material)
Product Description
Real Example

Product Introduction

2-color laminated flexographic printing machine, paper, film, non-woven and other web materials can be printed. Flexographic printing presses are widely used, easy to operate, and have a wide range of substrates. It can be printed with water-based ink or oil-based ink to meet the needs of environmental protection.
The substrate passes through the unwinding mechanism and then vertically passes through two printing units to complete two-color overprinting. Double-sided printing is possible.



Product parameters

Machine configuration: (Specific configuration customized according to customer requirements)

Standard

Matching

Air shaft

Ceramic anilox Roller

Auto tension control

Hydraulic type printing cylinder lifting

EPC

Camera

Pneumatic type printing cylinder lifting

Auto loading and unloading



Auto loading,and surface rewinding with motor



Chamber doctor blade


Product Performance

MODEL QTL-2600 QTL-2800 QTL-21000 QTL-21200
MAX.material width 600mm 800mm 1000mm 1200mm
MAX.printing width 560mm 760mm 960mm 1160mm
Suitable for material Paper:15-300g/m² Nonwoven:15-120g,PVC:10-120um,OPP:10-100um,BOPP:15-100um,PE:15-150um,NY:10-120um,PET:10-100um,CPP:10-100um
Colors 2colors,2+0,1+1
Printing repeat length 220-1000mm
Machine speed 100m/min
Printing speed 10-70m/min(depends on the material)
Principle of work Helical Gear+Belt Drive
Printing precision ±0.3mm
Plate thickness 1.7mm/2.28mm(if different thickness,please note us)
volts 3P ,380V ,50HZ(Please inform us of different requirements)

Equipment Details
印刷组printing-group.jpg 单隔墨泵Single-Separator-Ink-Pump.jpg

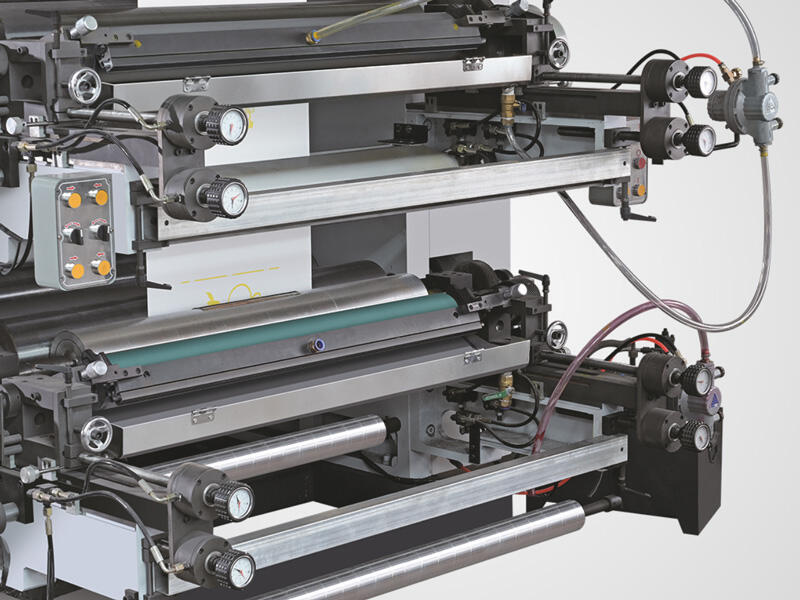

printing group

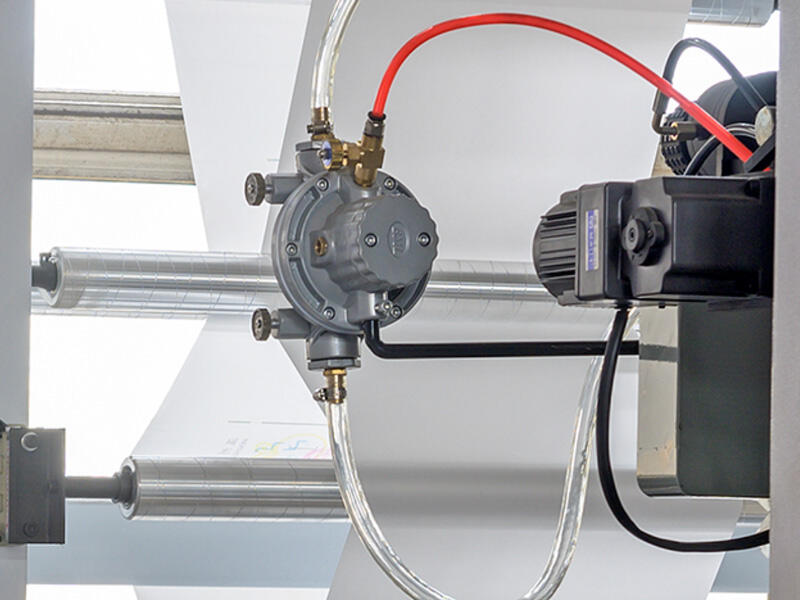

Single Separator Ink Pump

磁粉magnetic-particle.jpg 双放双收both-put-and-take-in-sth.jpg

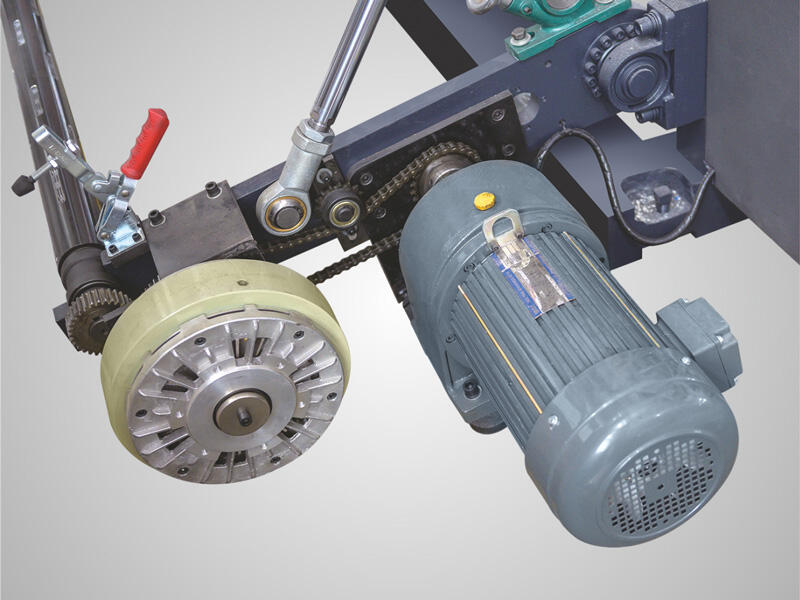

magnetic particle

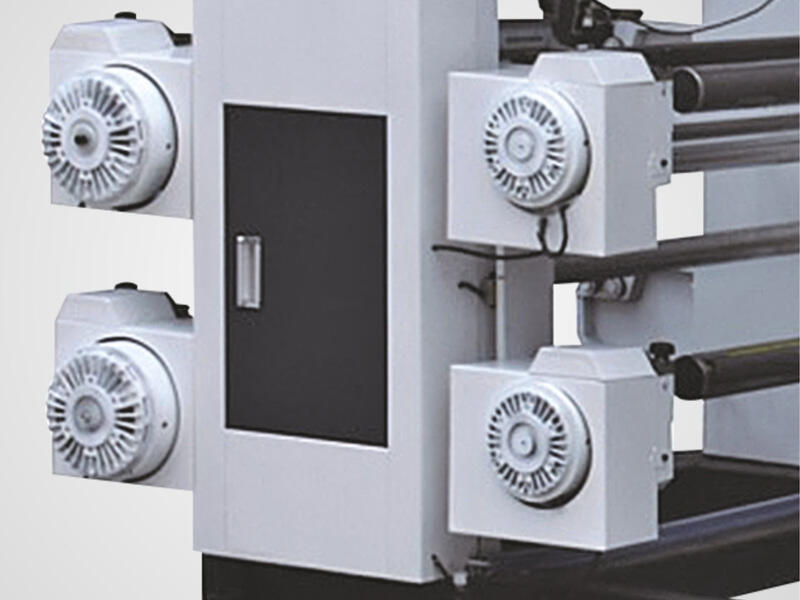

both put and take in sth.


delivery date:
Around 30 working days

After-sales service:
one year warranty (excluding the ink transfer roller and the demand side of the damage caused by improper operation), can provide remote guidance services, such as the need to go to the local can contact us for details.

FAQ

Q: How to determine the model you need?
A: Because each customer's requirements are not the same so flexographic printing presses need to be selected according to your requirements, we need to know your printing patterns, materials, ink types, printing speed, printing width and other specific information, we will be based on this information to ask you to recommend the right model and configuration!

Q: Warranty period of the equipment?
A: Our warranty period is 1 year (excluding the ink transfer roller and the damage caused by the improper operation of the demand side).

Q: What after-sales service does the manufacturer provide? (Installation/commissioning)
A: You can choose to let our master to your factory debugging installation, you can also choose remote after-sales service, specific requirements, please contact us for detailed communication!

Q: Flexographic printing machine can print the material?
A: Paper, plastic film (PE/PP/PET), non-woven fabrics, flexible packaging (such as food bags), aluminum foil and other rolls of material, printing materials are more extensive, you can also be and materials to carry out a test run, we will use the factory's existing machine to carry out a test run.

Q: Can you provide samples or proofs?
A: If you are afraid to buy the machine after the printing effect is not good, this problem you do not have to worry about, we have samples you can examine, you can also choose your own material to test the effect!

Q: What is the delivery period of the machine?
A: The delivery time of the machine and the configuration of the machine, the fastest delivery is about 30-40 working days, but the degree of customization is high if the delivery time needs to be extended!

Q: What is the maximum printing speed and width of the material?
A: The printing speed depends on the model, for example, our QTHA-CI series of machines his speed can reach 10-300m/min; the width of the overfeed is currently marked on our side is the maximum 1.2m, but if you need a larger size we can also support customized, the printing width is not as large as the width of the overfeed because of the need for a certain amount of adjustment space.

Q: What are the advantages of flexographic printing machine compared with gravure printing machine?
A: Flexographic printing using a flexible plate, through the anilox roller ink transfer, ink consumption than the gravure reduced by more than 20%; flexographic printing will generally be used in water-based ink, UV ink and other environmentally friendly ink, more environmentally friendly than gravure use of solvent-based inks, virtually no VOCS emissions can be achieved to the food-grade, and cleanup is simple, wide range of substrate materials.

Q: Do you support machine customization?
A: Our machines can be customized, each customer's requirements are unique, we will be more customer requirements and information to communicate with the custom to meet customer needs!
